Product Overview

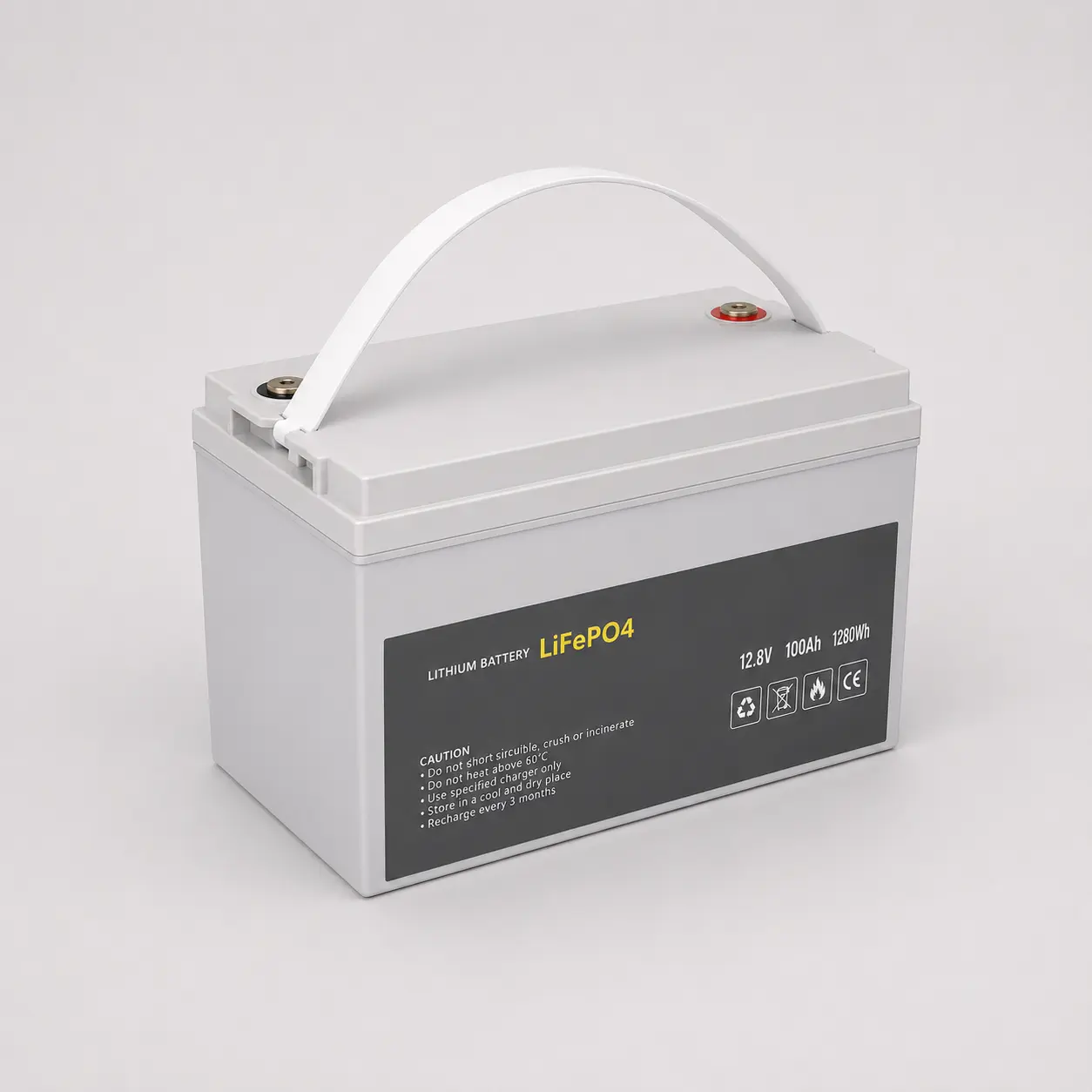

This 12V lithium iron phosphate battery uses a familiar lead-acid battery case format. It helps distributors and equipment manufacturers upgrade from conventional lead-acid batteries without redesigning the complete battery compartment.
Four capacity options are available:
12.8V 100Ah - 1.28kWh
12.8V 150Ah - 1.92kWh
12.8V 150Ah - 1.92kWh
12.8V 314Ah - 4.02kWh
Models for RV, UPS, golf cart, backup power, and OEM battery replacement projects.
All four models use LiFePO4 chemistry. The rated discharge current is 50A. Maximum discharge current is 100A. The standard charge current is 30A, with a maximum charge current of 50A.
Bluetooth monitoring, an LCD screen, CAN, and RS485 can be added for selected projects. Configuration should be confirmed before production.
Key Features and Buyer Benefits
- Lead-Acid Replacement Form Factor
The enclosure follows common lead-acid battery dimensions and installation formats.
This can reduce mechanical redesign work for RV systems, UPS cabinets, utility vehicles, and existing battery compartments.
Electrical compatibility must still be checked. The required charging voltage is 14.4V, and the listed discharge cutoff voltage is 10.8V.
- Four Capacity Options
The same 12.8V platform is available from 100Ah to 314Ah.
Distributors can cover compact replacement projects, longer-runtime systems, and higher-energy applications with one product family.
- Clear Current Ratings
Every model has the same listed current limits:
- Rated discharge current: 50A
- Maximum discharge current: 100A
- Charge current: 30A
- Maximum charge current: 50A
The larger models provide more runtime. They do not provide a higher rated discharge current.
- Optional Battery Monitoring
Bluetooth can be added for battery status monitoring through a mobile app.
An LCD screen can also be added for local battery information. Available display functions should be confirmed during project evaluation.
- Optional CAN and RS485 Communication
CAN or RS485 communication can be added when the battery must exchange data with a compatible controller, inverter, charger, or host system.
Buyers should provide the equipment brand, model, firmware version, and required protocol before ordering.
- Long-Life LFP Chemistry
The listed cycle life is 6,000 cycles under the stated test conditions.
LiFePO4 chemistry is suitable for applications that require frequent cycling, stable output, and lower routine maintenance than conventional lead-acid batteries
Technical Specifications
|
Specification |
BMP12LR-100 |
BMP12LR-150 |
BMP12LR-200 |
BMP12LR-314 |
|
Rated Capacity |
100Ah |
150Ah |
200Ah |
314Ah |
|
Listed Battery Energy |
1.28kWh |
1.92kWh |
2.56kWh |
4.02kWh |
|
Rated Voltage |
12.8V |
12.8V |
12.8V |
12.8V |
|
Charge Voltage |
14.4V |
14.4V |
14.4V |
14.4V |
|
Discharge Cutoff Voltage |
10.8V |
10.8V |
10.8V |
10.8V |
|
Rated Discharge Current |
50A |
50A |
50A |
50A |
|
Maximum Discharge Current |
100A |
100A |
100A |
100A |
|
Charge Current |
30A |
30A |
30A |
30A |
|
Maximum Charge Current |
50A |
50A |
50A |
50A |
|
Dimensions, L × W × H |
330 × 175 × 216mm |
483 × 170 × 240mm |
522 × 240 × 218mm |
520 × 269 × 220mm |
|
Weight |
10kg |
15kg |
20kg |
40kg |
Common Specifications
|
Item |
Specification |
|
Battery Chemistry |
Lithium Iron Phosphate, LiFePO4 / LFP |
|
Optional Display |
LCD screen |
|
Optional Communication |
CAN / RS485 |
|
Optional Monitoring |
Bluetooth mobile app |
|
Operating Temperature |
-20°C to 55°C |
|
Storage Temperature |
0°C to 40°C |
|
Relative Humidity |
≤95% RH |
|
Protection Rating |
IP21 |
|
Rated Cycle Life |
6,000 cycles |
|
Cell Standards Listed |
IEC 62619 / UL 1642 |
|
Battery Pack Documents Listed |
UN38.3 / MSDS / CE |
Cycle-life test condition stated in the supplied specification: 100% depth of discharge, 0.5C charge/discharge rate, and 25°C ±5°C.
Actual energy output and service life depend on load, temperature, charging settings, depth of discharge, BMS limits, and operating conditions.
Certification reports and document scope should be confirmed by model and destination market before ordering.
Application Solutions
RV and Camper Auxiliary Power
The battery can replace selected lead-acid house batteries in RV and camper electrical systems.
The 100Ah model suits compact auxiliary loads. The 150Ah and 200Ah versions provide longer backup time. The 314Ah model is intended for projects that need more stored energy in one enclosure.
This series should not be selected as an engine starter battery unless the starting-current requirement has been separately approved.
UPS and Backup Power
The battery can support UPS systems and backup power equipment that operate within the listed voltage and current limits.
Before selection, buyers should confirm:
- Charger output voltage
- Continuous load current
- Maximum load current
- Required backup time
- Available installation space
- Low-temperature operating conditions
Golf Cart and Utility Vehicle Projects
The product can be evaluated for golf carts and low-speed utility vehicles.
Most golf cart systems use a battery bank above 12V. Series connection, parallel connection, controller current, and BMS compatibility must therefore be confirmed before ordering.
Do not assume that a standard 12V model can be connected in series without written technical approval.
OEM Lead-Acid-to-Lithium Conversion
The standard enclosure format is suitable for manufacturers converting an existing lead-acid product line to LiFePO4.
Optional Bluetooth, LCD, CAN, and RS485 functions can support product differentiation and system integration.
Terminal type, case dimensions, communication protocol, branding, packaging, and documentation should be finalized before production.
Model Selection Guide
BMP12LR-100
Choose this model when the project requires:
- A compact LiFePO4 12V 100Ah battery
- 1.28kWh of listed battery energy
- Lower unit weight
- Replacement of a common 100Ah lead-acid battery format
- RV, UPS, or auxiliary power applications
This is the primary model for buyers searching for a LiFePO4 100Ah or LiFePO4 12V 100Ah replacement battery.
BMP12LR-150
Choose this model when the project requires:
- 150Ah capacity
- 1.92kWh of listed battery energy
- More runtime than a 100Ah battery
- A mid-capacity option for distributors
- The same 50A rated discharge platform
BMP12LR-200
Choose this model when the project requires:
- 200Ah capacity
- 2.56kWh of listed battery energy
- Longer backup time
- A higher-capacity RV or UPS battery
- Fewer battery units than a lower-capacity design
BMP12LR-314
Choose this model when the project requires:
- 314Ah capacity
- 4.02kWh of listed battery energy
- Maximum energy within this 12.8V series
- Longer operating time in one enclosure
- Reduced unit count for energy-focused projects
The 314Ah version still has a rated discharge current of 50A. Select it for increased runtime, not for increased continuous output power.
Procurement Checkpoints
Before requesting a quotation, confirm the following:
|
Project Information |
Why It Matters |
|
Application |
Determines load profile and operating conditions |
|
System Voltage |
Confirms whether a 12.8V battery is suitable |
|
Continuous Load Current |
Must remain within the rated discharge limit |
|
Maximum Load Current |
Must remain within the maximum discharge limit |
|
Charger Brand and Model |
Confirms the 14.4V charging profile |
|
Required Backup Time |
Determines the correct Ah capacity |
|
Battery Compartment Size |
Confirms enclosure fit |
|
Terminal Layout |
Prevents mechanical installation issues |
|
Bluetooth or LCD Requirement |
Confirms optional monitoring configuration |
|
CAN or RS485 Protocol |
Confirms host-equipment compatibility |
|
Series or Parallel Requirement |
Requires engineering approval |
|
Destination Market |
Determines certification and document requirements |
|
Order Quantity |
Supports pricing and production planning |
Frequently Asked Questions
01.Is this a 12V lithium iron phosphate battery?
Yes. Its exact nominal voltage is 12.8V.
It belongs to the common 12V LiFePO4 battery class used for lead-acid replacement, RV auxiliary power, UPS systems, and other low-voltage applications.
02.Can it directly replace any lead-acid battery?
Not automatically.
The enclosure format may match a conventional lead-acid battery, but the charger, controller, voltage settings, load current, terminal layout, and installation environment must also be compatible.
The listed charge voltage is 14.4V. The listed discharge cutoff voltage is 10.8V.
03.What is the energy of the LiFePO4 12V 100Ah model?
The RK12V100AH-LAS has a rated capacity of 100Ah and listed battery energy of 1.28kWh.
Actual delivered energy depends on the BMS settings, discharge rate, temperature, and battery condition.
04.Do the larger batteries provide more output power?
No. They provide more stored energy and longer runtime.
All four models have a rated discharge current of 50A and a maximum discharge current of 100A.
05.Are LiFePO4 and LFP batteries the same?
Yes.
LiFePO4 and LFP both refer to lithium iron phosphate chemistry. The phrase LiFePO4 LFP batteries describes the same battery chemistry.
06.Is "lithium phosphate iron battery" the correct term?
Some buyers use lithium phosphate iron battery as a search phrase.
The standard technical term is lithium iron phosphate battery. LiFePO4 battery and LFP battery are also correct.
07.Is Bluetooth included?
Bluetooth is an optional function.
The exact app, displayed parameters, language, and communication range should be confirmed before ordering.
08.Are CAN and RS485 standard?
They are listed as optional communication functions.
The required protocol must be checked against the customer's controller, inverter, charger, or host equipment.
09.Can these batteries be connected in series?
Series capability is not confirmed in the supplied specification.
Do not connect the batteries in series unless the selected model and BMS have been approved for that configuration.
10.Do you supply a 24V LiFePO4 battery?
This page covers the four listed 12.8V models.
A 25.6V configuration belongs to a separate product specification. Buyers searching for a 24V LiFePO4 battery should provide the required capacity, current, enclosure, and application for separate confirmation.
11.Can the battery be installed outdoors?
The listed protection rating is IP21.
It should be installed in a dry, protected environment. It is not intended for direct exposure to rain, water spray, or severe outdoor conditions.
12.What is the rated cycle life?
The listed cycle life is 6,000 cycles under the stated test conditions of 100% DoD, 0.5C, and 25°C ±5°C.
Actual service life will vary with temperature, charging settings, current, depth of discharge, and operating frequency.
OEM and Bulk Supply
Available project support may include:
Factory-direct volume supply
Sample evaluation
OEM logo application
Custom labels and packaging
Case and terminal confirmation
Optional Bluetooth monitoring
Optional LCD display
CAN or RS485 protocol matching
Product datasheets
UN38.3 and MSDS documentation
Certification document review
Shipping documentation
All customization, communication functions, certification requirements, and documentation must be confirmed before production.
Send us the required capacity, application, order quantity, charger or controller model, load current, optional communication functions, and destination market.
We will review the battery configuration, enclosure fit, current requirements, protocol compatibility, and documentation before quotation.
