Shenzhen Blumoti Energy Co., Ltd. is a leading Chinese manufacturer and supplier of 3.7v 180mah lithium polymer battery. If you are looking to source durable, bulk 3.7v 180mah lithium polymer battery from China, feel free to contact our factory for details. Custom orders are welcome.
Rechargeable lithium-ion Polymer Battery 3.7V / 3.85V | Custom LiPo Battery | Blumoti
A 3.7V 180mAh rechargeable lithium polymer battery is a small LiPo battery designed for wearable devices, Bluetooth products, and compact consumer electronics.
These devices usually have limited internal space and irregular layouts, so they require ultra-thin, lightweight, and custom-shaped battery solutions. As a pouch cell battery, LiPo batteries offer flexible size and shape customization to better fit device designs and maximize internal space.
Small LiPo batteries are generally more suitable for low-power miniature devices rather than fast charging or high-rate discharge applications, such as Bluetooth earbuds, smart wearables, sensors, and other portable electronics.
3.7v 180mah lithium polymer battery – General Specifications
Nominal Voltage: 3.7V
Charging Voltage: 4.2V
Discharge Cut-off Voltage: 2.75V / 3.0V
Nominal Capacity: 180mAh (0.2C discharge)
Standard Discharge Rate: 0.2C–1C (36 –180mAh )
Standard Charging Rate: 0.5C–1C (90–180mAh)
Protection Circuit: PCB/PCM, including overcharge, over-discharge, overcurrent, and short-circuit protection
Operating Temperature: 0–45°C (charging); -20–60°C (discharging)
Product parameters
|
Model NO. |
Capacity |
Nom.Voltage |
Cathode |
Thickness |
Width |
Length |
Energy Density |
|
BMP352525DT |
180mAh |
3.7V |
LCO |
3.5mm |
25mm |
25mm |
304Wh/L |
|

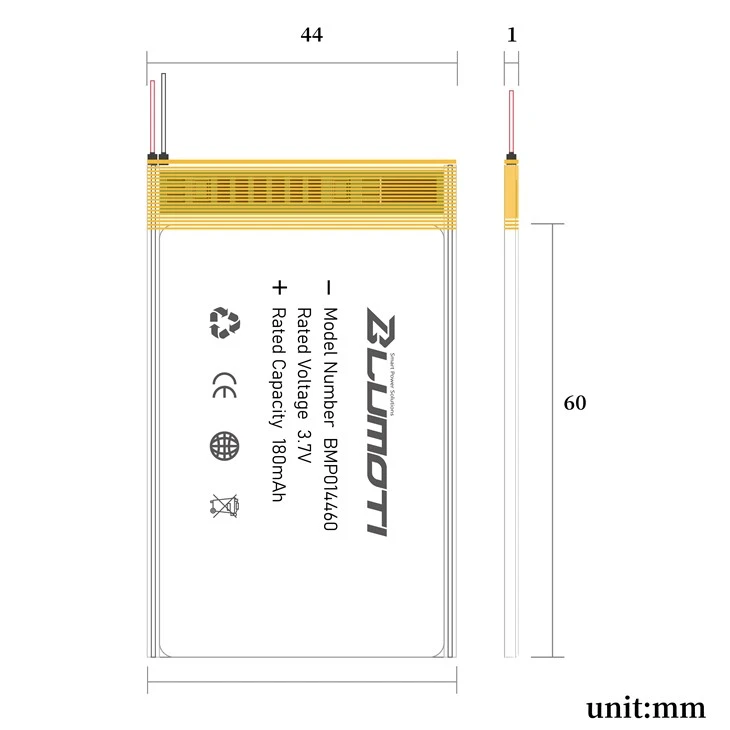

BMP'014460DT |
180mAh |
3.7V |
NCM |
1mm |
44mm |
60mm |
252Wh/L |
|
BMP302528DT |
190mAh |
3.8V |
LCO |
3mm |
25mm |
28mm |
344Wh/L |
|
BMP401525DT |
190mAh |
3.7V |
NCM |
4mm |
15mm |
25mm |
469Wh/L |
|
BMP501624DT |
190mAh |
3.7V |
LCO |
5mm |
16mm |
24mm |
366Wh/L |
|
BMP104460DT |
200mAh |
3.7V |
NCM |
1mm |
44mm |
60mm |
280Wh/L |
|
BMP372023DT |
200mAh |
3.85V |
LCO |
3.7mm |
20mm |
23mm |
452Wh/L |
|
BMP401060DT |
200mAh |
3.7V |
LCO |
4mm |
10mm |
60mm |
308Wh/L |
|
BMP402030DT |
200mAh |
3.7V |
LCO |
4mm |
20mm |
60mm |
308Wh/L |
|
BMP431730DT |
200mAh |
3.7V |
NCM |
4.3mm |
17mm |
30mm |
337Wh/L |
|
BMP501235DT |
200mAh |
3.7V |
LCO |
5mm |
12mm |
35mm |
363Wh/L |
|
BMP602025DT |
200mAh |
3.7V |
LCO |
6mm |
20mm |
25mm |
247Wh/L |
|
BMP701327DT |
200mAh |
3.7V |
LCO |
7mm |
13mm |
27mm |
301Wh/L |
3.7v 180mah lithium polymer battery Features
- Thin, lightweight, and custom-shaped design.
Ultra-thin and custom-shaped batteries can be tailored to fit irregular internal spaces, improving space utilization. Examples include elongated, curved, and U-shaped designs.
- Low self-discharge.
Low self-discharge. The monthly self-discharge rate is 3–5% at 25°C, compared with 8–10% for standard LiPo batteries.
- Ultra-long battery life.
Under low-rate discharge conditions (0.1–0.5C), the battery can achieve more than 800 cycles while retaining 80% of its capacity
Applications for 3.7v 180mah lithium polymer battery
Most small and mini LiPo batteries are designed for low-current discharge, making them ideal for compact, low-power devices that require the longest possible battery life. Common application scenarios include:
1. Wearable Devices
Basic smart bands with step tracking and heart rate monitoring.
Entry-level kids' GPS smartwatches.
2. Portable Audio Devices
Mini voice recorders.
Wireless microphone transmitters and receivers.
3. Wireless Peripherals & Accessories
Bluetooth stylus pens.
Wireless mice, keyboards, and smart remote controls.
We provide what kinds of services
Flexible Customization:
Customize the shape, size, capacity, voltage, BMS, connectors, and more to fit your needs.
Supply Capacity:
Sample service available; bulk orders supported.
Comprehensive Service:
Reliable after-sales follow-up, and a one-year warranty.
Business Support:
OEM/ODM services available.
FAQ
Q1: What is the actual capacity?
A: The battery delivers a full 180mAh under 0.2C discharge conditions.
Q2: What is the actual operating voltage plateau? What is the discharge cut-off voltage?
A: The nominal voltage is 3.7V, and the fully charged voltage is 4.2V. The discharge plateau is approximately 3.7V. The recommended cut-off voltage is 2.75V–3.0V, depending on the protection circuit settings. Discharging below 2.5V may damage the cell.
Q3: Is customization available?
A: Yes. Customization is available for battery dimensions, wire length, and connector types such as JST, PH, and XH.
Q4: What is the minimum order quantity (MOQ)?
A: For standard sizes, the MOQ is typically 1,000–3,000 pieces. For custom sizes, the MOQ usually starts from 5,000 pieces.
