As a supplier of High Voltage Lipo Batteries, I am often asked about the chemical reactions that occur inside these batteries during the charging and discharging processes. Understanding these reactions is crucial for anyone who uses or supplies these batteries, as it can help in optimizing their performance, ensuring safety, and extending their lifespan.
The Basics of High Voltage Lipo Batteries
High Voltage Lipo (Lithium - Polymer) batteries are a type of rechargeable battery that has gained significant popularity in recent years due to their high energy density, lightweight, and relatively long cycle life. They are commonly used in a wide range of applications, from consumer electronics such as smartphones and laptops to high - performance drones and electric vehicles.
Chemical Reactions During Charging
When a High Voltage Lipo Battery is being charged, a series of complex chemical reactions take place at the anode and cathode.
Anode Reactions
The anode of a High Voltage Lipo Battery is typically made of graphite. During charging, lithium ions (Li⁺) are extracted from the cathode material and migrate through the electrolyte to the anode. At the anode, these lithium ions intercalate (insert) into the graphite layers.
The chemical reaction at the anode can be represented as follows:
[
6C + xLi^{+}+ xe^{-}\rightleftharpoons Li_{x}C_{6}
]
In this reaction, (x) represents the number of lithium ions that intercalate into the graphite structure. As the charging process progresses, more lithium ions are inserted into the graphite, increasing the value of (x). This intercalation process is a reversible reaction, which is essential for the battery's rechargeability.
Cathode Reactions
The cathode of a High Voltage Lipo Battery is usually made of a lithium - metal oxide, such as lithium cobalt oxide (LiCoO₂), lithium manganese oxide (LiMn₂O₄), or lithium iron phosphate (LiFePO₄). During charging, lithium ions are extracted from the cathode material.
For example, in a LiCoO₂ cathode, the reaction is:
[
LiCoO_{2}\rightleftharpoons Li_{1 - x}CoO_{2}+xLi^{+}+xe^{-}
]
As the battery charges, the lithium ions are removed from the LiCoO₂ structure, leaving behind a lithium - deficient compound (Li_{1 - x}CoO_{2}). The electrons released in this reaction flow through the external circuit to the anode, where they combine with the lithium ions that have migrated through the electrolyte.
Electrolyte Role
The electrolyte in a High Voltage Lipo Battery is a crucial component that allows the lithium ions to move between the anode and the cathode. It is typically a lithium - salt solution, such as lithium hexafluorophosphate (LiPF₆) dissolved in an organic solvent. The electrolyte provides a medium for the lithium ions to travel, and it also helps to maintain the electrical neutrality of the battery.
Chemical Reactions During Discharging
When the High Voltage Lipo Battery is discharging, the chemical reactions that occurred during charging are reversed.
Anode Reactions
At the anode, the lithium ions that were intercalated into the graphite during charging are de - intercalated. The lithium ions leave the graphite structure and move through the electrolyte towards the cathode. The electrons are also released from the anode and flow through the external circuit to provide electrical energy. The reaction at the anode during discharging is:
[
Li_{x}C_{6}\rightleftharpoons 6C + xLi^{+}+ xe^{-}
]
Cathode Reactions
At the cathode, the lithium ions that have migrated through the electrolyte combine with the cathode material. For a LiCoO₂ cathode, the reaction during discharging is:
[
Li_{1 - x}CoO_{2}+xLi^{+}+xe^{-}\rightleftharpoons LiCoO_{2}
]
As the battery discharges, the lithium ions are re - inserted into the cathode material, restoring the original lithium - rich compound.
Factors Affecting the Chemical Reactions
Several factors can affect the chemical reactions inside a High Voltage Lipo Battery during charging and discharging.
Temperature
Temperature has a significant impact on the performance of High Voltage Lipo Batteries. At low temperatures, the mobility of lithium ions in the electrolyte decreases, which can slow down the charging and discharging processes. High temperatures, on the other hand, can accelerate the chemical reactions but may also lead to side reactions, such as the decomposition of the electrolyte or the formation of a solid - electrolyte interphase (SEI) layer on the anode surface.
Charging and Discharging Rates
The rate at which a High Voltage Lipo Battery is charged or discharged can also affect the chemical reactions. Fast charging or discharging can cause uneven distribution of lithium ions in the battery, leading to the formation of lithium dendrites on the anode surface. These dendrites can penetrate the separator between the anode and the cathode, causing a short - circuit and potentially leading to thermal runaway.
Our Product Range

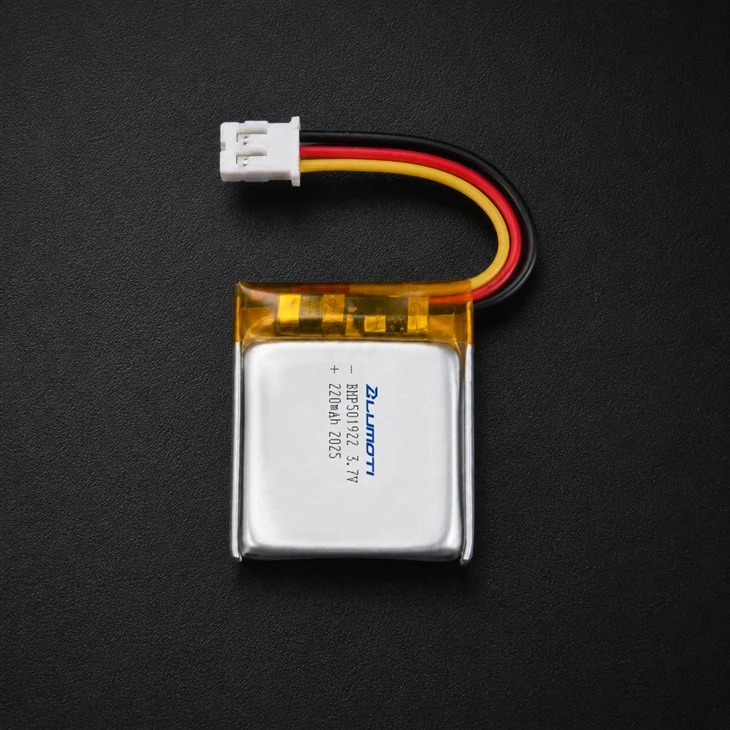

As a High Voltage Lipo Battery supplier, we offer a wide range of products to meet the diverse needs of our customers. You can check out our lithium ion polymer battery 3.7v 1200mah, which is suitable for many consumer electronics applications. Our High Capacity Lipo Cells are ideal for high - power applications that require long - lasting energy. For smaller devices, we have Small lithium - ion polymer battery. We also provide 3.7v 180mah lithium polymer battery and 3.7V 200mAh Lithium Polymer Battery for specific low - power requirements.
Contact Us for Purchase and Discussion
If you are interested in our High Voltage Lipo Batteries or have any questions about the chemical reactions, performance, or application of these batteries, we encourage you to contact us. Our team of experts is ready to provide you with detailed information and assist you in finding the most suitable battery for your needs. Whether you are a small - scale consumer or a large - scale industrial user, we can offer customized solutions to meet your specific requirements.
References
- Arora, P., & White, R. E. (1998). Comparative study of the electrolyte flammability in lithium - ion batteries. Journal of the Electrochemical Society, 145(10), 3647 - 3653.
- Tarascon, J. M., & Armand, M. (2001). Issues and challenges facing rechargeable lithium batteries. Nature, 414(6861), 359 - 367.
- Winter, M., & Brodd, R. J. (2004). What are batteries, fuel cells, and supercapacitors?. Chemical Reviews, 104(10), 4245 - 4269.
